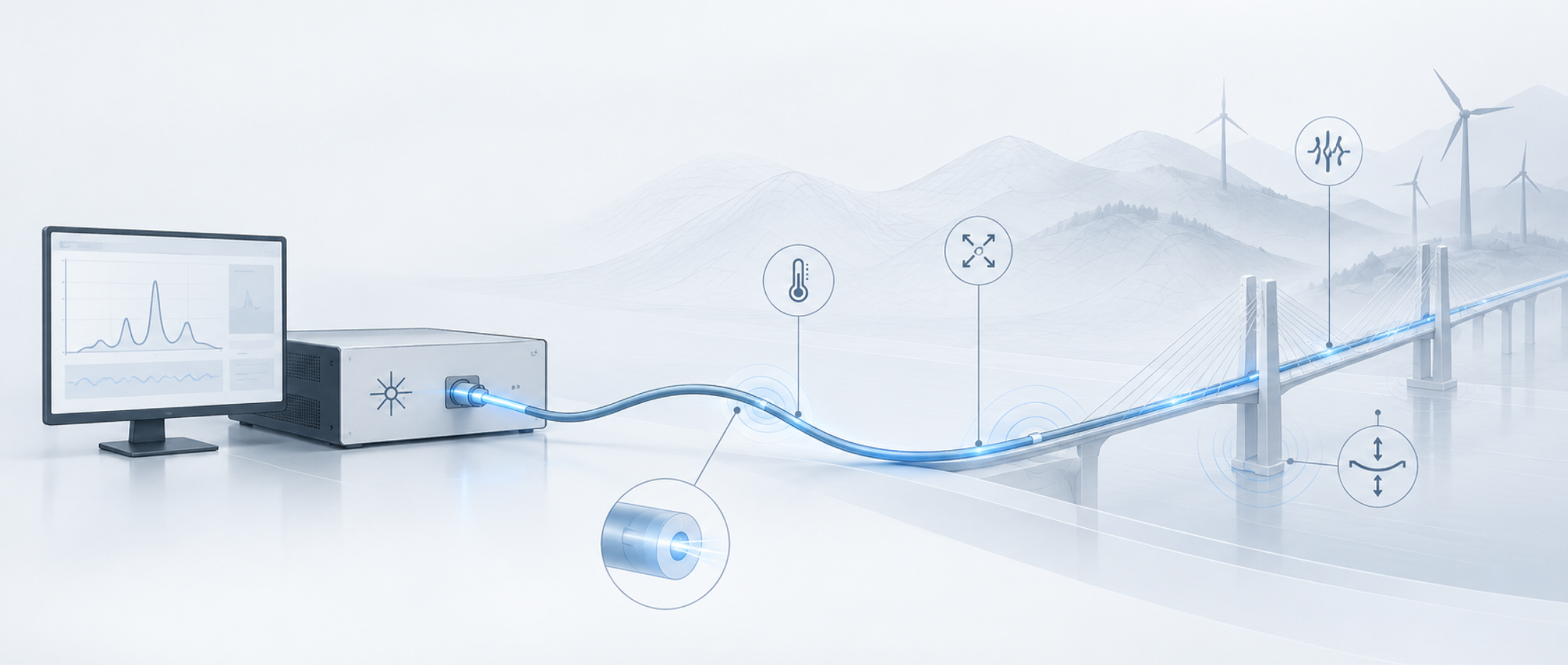

Faseroptische Messtechnologien
Unterschiedliche Monitoring-Aufgaben erfordern unterschiedliche Messtechnologien. Als unabhängiger Systemintegrator wählen und kombinieren wir die Technologien, die am besten zu den Anforderungen des jeweiligen Projekts passen.
Die passende Technologie für jede Anwendung
Jedes Projekt stellt spezifische Anforderungen an Messgrössen, Messlänge, räumliche Auflösung und Abtastrate. Als unabhängiger Systemintegrator haben wir Zugriff auf unterschiedliche Technologien zur faseroptischen Dehnungs- und Temperaturmessung und können die für das jeweilige Projekt am besten geeignete Technologie auswählen.
Dabei steht nicht eine bestimmte Technologie oder ein bestimmter Hersteller im Vordergrund, sondern die zuverlässige und praxisgerechte Lösung für die jeweilige Messaufgabe.
Measurand
What needs to be measured?
Sensing length
Over what distance?
Spatial resolution
At what resolution?
Sampling rate
How frequently?
Längsverteilte Messtechnik

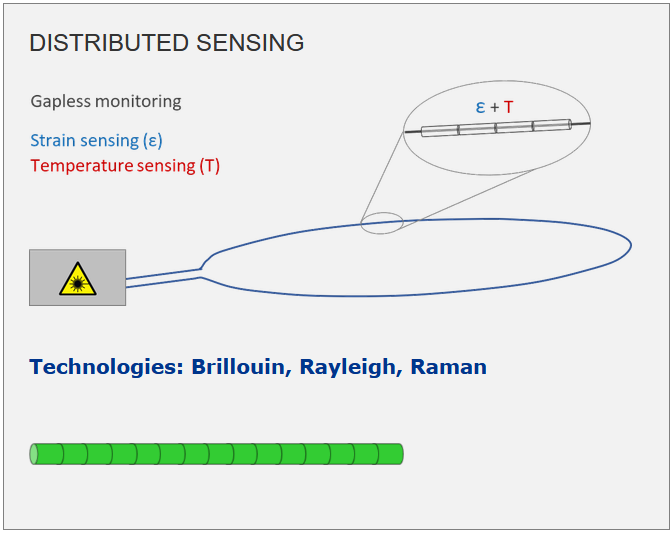

Bei der verteilten Messtechnik wird die Glasfaser selbst über ihre gesamte Länge zum Sensor. Dadurch können Messgrössen wie Dehnung, Temperatur oder Vibration kontinuierlich entlang der Faser erfasst werden. Je nach eingesetzter Technologie sind Messungen über Distanzen von wenigen Metern bis zu mehreren Kilometern möglich.
Technologien wie Brillouin-, Rayleigh- und Raman-Sensing bieten unterschiedliche Kombinationen aus Messbereich, räumlicher Auflösung und Messmöglichkeiten. Wir wählen die geeignete Technologie und Systemkonfiguration entsprechend den Anforderungen des jeweiligen Monitoring-Projekts.
Punktbasierte Sensorik

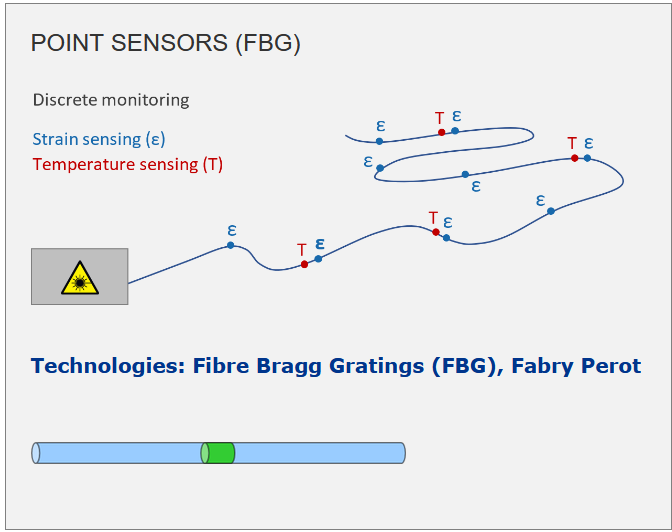

Bei der punktbasierten Sensorik werden einzelne Sensoren an definierten Stellen entlang einer Glasfaser angeordnet. Dieser Ansatz eignet sich insbesondere für Anwendungen, bei denen Messungen an bestimmten Punkten erforderlich sind oder verschiedene Sensorelemente in einem gemeinsamen Monitoring-System kombiniert werden sollen.
Fibre Bragg Gratings (FBGs) ermöglichen beispielsweise die präzise Messung von Dehnung und Temperatur. Je nach Anforderungen der Anwendung können auch andere optische Sensortechnologien wie Fabry-Pérot-Sensoren eingesetzt werden. Als unabhängiger Systemintegrator wählen und kombinieren wir geeignete Sensoren und Auslesetechnologien entsprechend den Anforderungen des jeweiligen Projekts.
